What Is an Electric Boiler Expansion Tank​?

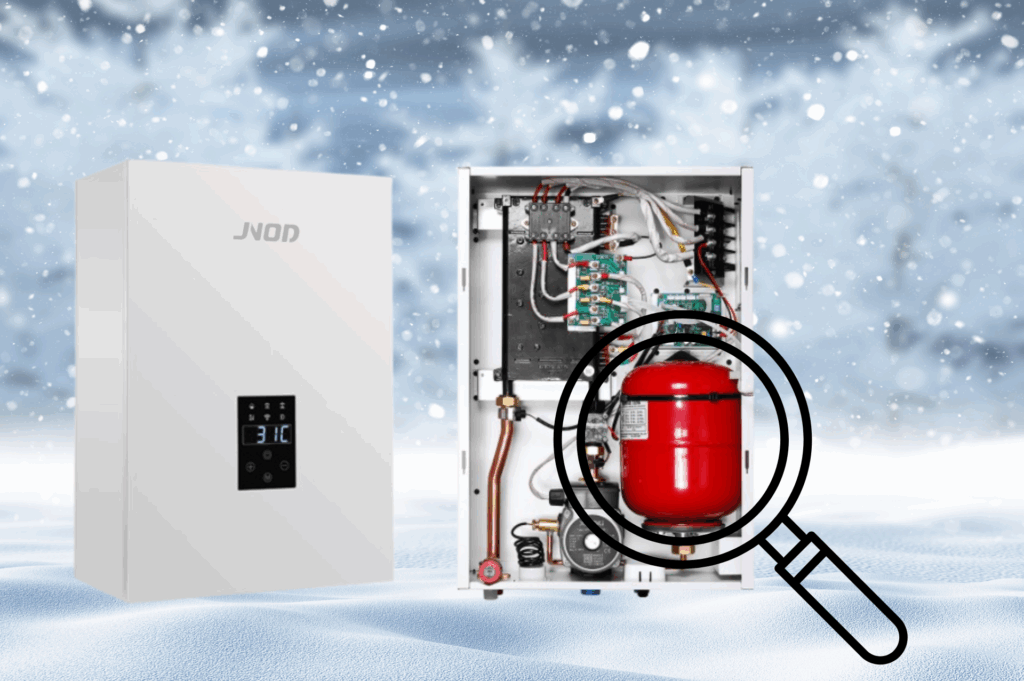

An expansion tank, also known as an expansion vessel, is found inside an electric boiler. As the temperature of the water in the system increases, the water pressure will also increase. An expansion tank is one of the ways your boiler maintains a safe pressure level to avoid damage.

This article will explain how a boiler expansion tank works, the types and sizes it should be, and why it is important to maintain and repair it.

How a Boiler Expansion Tank Works

A boiler expansion tank is a small pressure-containing vessel connected to your boiler system. The purpose of the expansion tank is to contain the additional pressure that is created when the water inside the main tank is heated. When water is heated, it expands significantly. Without an expansion tank, this increase in pressure could damage the boiler, pipes, or valves.

The inside of the expansion tank is divided into two sections by a thin rubber sheet diaphragm or bladder. One side holds water from the boiler and the other side holds pressurized air or nitrogen. As the water expands due to heating, it pushes against the diaphragm, compressing the air on the other side. This process absorbs the increased pressure and keeps the boiler system stable.

Why Electric Boilers Need an Expansion Tank

Boiler Expansion tanks keep the pressure in the combi boiler stable as the water heats and cools.

• Relieves pressure from thermal expansion.
• Prevents damage to pipes, valves, and other components.
• Minimizes the risk of leaks and system failures.
• Helps maintain stable pressure for consistent heating performance.

Without a properly sized expansion tank, the safety relief valve on your boiler could frequently open to release excess pressure. This not only wastes energy and water but also reduces the lifespan of the system.

Types of Boiler Expansion Tank

There are two main types of boiler expansion tanks:

• Steel Expansion Tanks: These older tanks use an air cushion above the water without a diaphragm. They often require regular maintenance to drain excess water and replenish the air space.
• Diaphragm or Bladder Expansion Tanks: Modern tanks include a flexible membrane that separates air from water, reducing the need for maintenance and preventing air from dissolving into the system water.

Electric boilers typically use diaphragm expansion tanks for ease of installation and reliability.

Warning Signs of Boiler Expansion Tank

Like any part of a heating system, a boiler expansion tank can develop problems over time. Common warning signs include:

• The boiler pressure gauge frequently shows high pressure.
• Water leaks from the pressure relief valve.
• The tank feels full of water (no air cushion).
• Unusual banging or knocking noises from pipes (water hammer).

If you notice any of these symptoms, it may be time to check or replace your expansion tank.

How to Size a Boiler Expansion Tank

Selecting the right size is critical. Factors influence:

• The total water volume in the heating system.
• The operating pressure.
• The maximum temperature the boiler will reach.

Your boiler manufacturer or installer should provide recommendations. Using an undersized tank can lead to pressure problems and frequent maintenance issues.

Benefits of a Properly Maintained Boiler Expansion Tank

A well-maintained boiler expansion tank delivers important advantages:

• Extends the lifespan of your electric boiler.
• Reduces stress on pipes, valves, and fittings.
• Enhances heating efficiency.
• Lowers maintenance and repair costs.
• Provides safer operation during temperature fluctuations.

Conclusion

A boiler expansion tank is a critical component of any electric heating system. It ensures pressure stability, protects against damage, and supports efficient, trouble-free heating. Whether you are installing a new electric boiler or maintaining an existing one, understanding and caring for the expansion tank will help you avoid problems and get the most from your investment.

If you are unsure about sizing, installation, or maintenance, consult a qualified heating professional for guidance.
