JNOD BQ Series Open-Vented Electric Boiler
The BQ series oepn-vented electric boilers provides convenient and reliable space heating without the need for fossil fuels. They offer power outputs ranging from 5.5 kW to 14.4 kW with CE certification.
They can supply central heating and domestic hot water when connected to a domestic water tank and an expansion vessel. They can also serve as a backup heating source for heat pumps in extremely cold regions.
Open-vented electric boilers are designed for compatibility with external circulation pumps and water tanks, as they do not contain built-in components. This design results in a more compact unit.
Compact Design
Near Silent Operation
Safe Protection
Constant Temperature
Open-Vented Single Heating System Design for Constant Temperature
Zero-Flue Electric Heating
This electric heating boiler eliminates gas pipes and flues. Installers save up to 40% on setup time and costs.
Open-Vented Hydronic Compatibility
The system operates perfectly inside traditional low-pressure open-vented water networks. It ensures stable, reliable water circulation.
98% Heating Efficiency
High heating efficiency ratings help your business and clients qualify easily for regional green energy financial incentives.
Technical Features and Wide-Ranging Applications
Core Performance Features
Space-Saving Design: Compact, wall-mounted chassis optimizes installation space.
Patented Heating Technology: World-first cast aluminum heating element delivers maximum thermal efficiency.
Multi-Layer Security: Built-in double dry-burning protection, auto-antifreeze, and smart fault detection ensure absolute reliability.
Seamless Integration: Engineered for open-vented water networks with touch keys and a clear LED display.
Key Applications and Uses
Heating & Hot Water: Supplies stable hot water and central heating through radiators or underfloor systems.
Smart Hydronic Control: Adapts perfectly to existing external circulating pumps and expansion tanks via Wi-Fi remote management.
Target Scenarios
Older Building Retrofits: Ideal for upgrading historic properties using existing low-pressure heating infrastructures.
Large Residences: Perfect for premium homes requiring separate expansion and cold water storage setups.

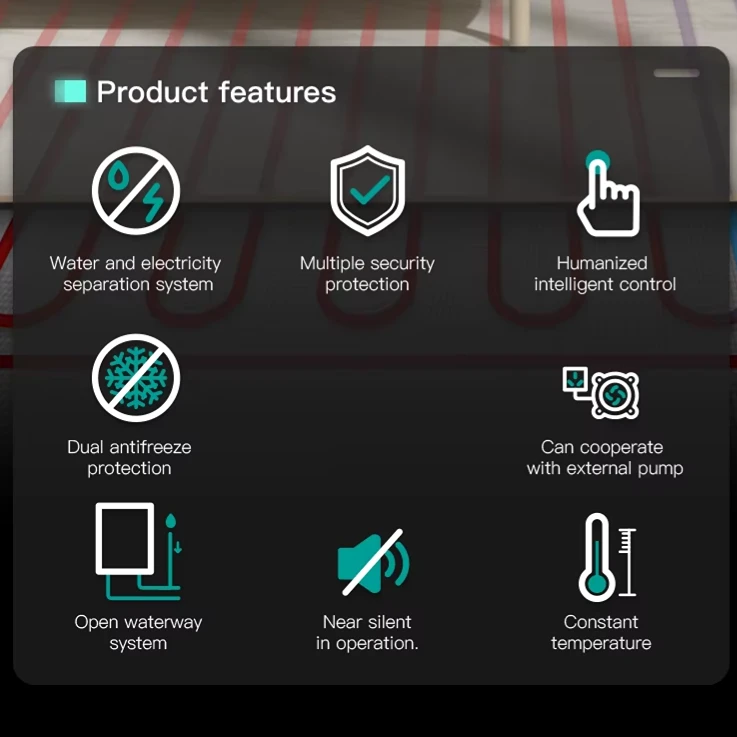

Advanced Safety and Performance Features
It built-in patented water-electricity separation, open waterway system, and dual antifreeze protection to eliminate installation risks. This highly integrated design ensures near-silent operation and constant room temperatures without requiring complex structural setups.
Patented heating element technology
Scale-Resistant Design. Water and electricity separate completely inside the chamber. This prevents scale buildup, guarantees operating safety, and extends the overall boiler lifespan.

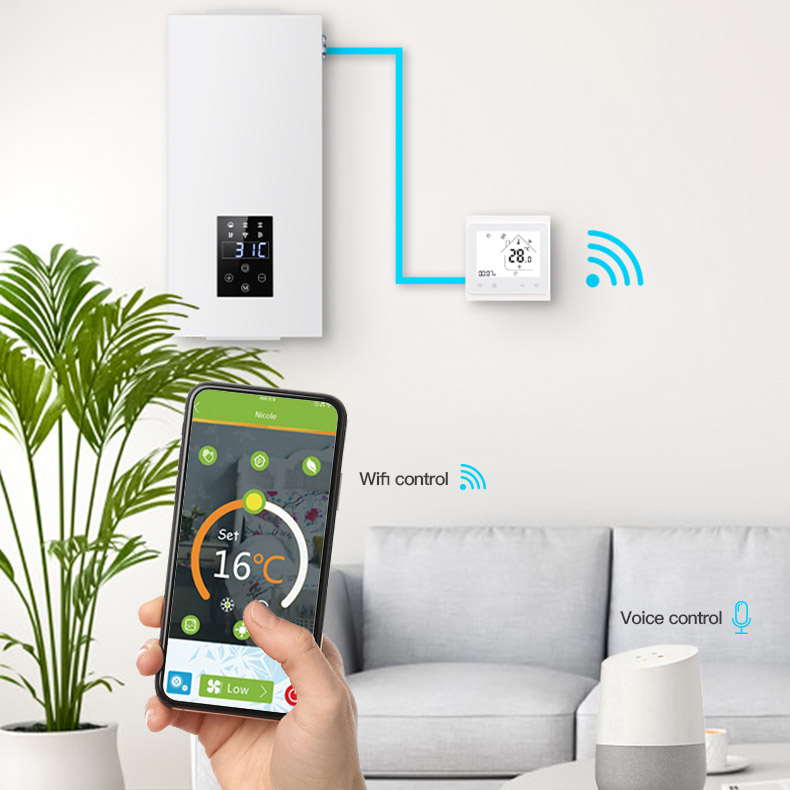

Smart Control
JNOD electric boilers feature advanced smart controls supporting both remote Wi-Fi APP adjustments and seamless room thermostat connectivity. This integration allows users to effortlessly manage precise indoor climate profiles from anywhere, ensuring maximum comfort and optimized energy.
Product Technical Specifications
| Model | BQ05 | BQ07 | BQ09 | BQ11 | BQ13 | BQ14 | |||||||
| Rated Power (kW) | 5.5 | 7.5 | 9.5 | 11 | 13 | 14.4 | |||||||
| Phase | 1/3 | ||||||||||||
| Voltage(V) | 230/400 | ||||||||||||
| Rated Current (A) | 23.9 | 8.0 | 32.6 | 10.9 | 41.3 | 13.8 | 47.8 | 16.0 | 56.5 | 18.8 | 62.6 | 20.9 | |
| Wire Section (mm²) | 3*2.5 | 5*2.5 | 3*6 | 5*2.5 | 3*6 | 5*2.5 | 3*10 | 5*2.5 | 3*10 | 5*2.5 | 3*12 | 5*4 | |
| Working Temp. Range | 30°C~80°C (in radiator mode) | ||||||||||||
| 30°C~60°C (in floor heating mode) | |||||||||||||
| Max.Water Temperature | 85°C | ||||||||||||
| Temperature Difference Setting Range | 5~30°C | ||||||||||||
| Antifreeze Start Temperature | <8°C | ||||||||||||
| Anti-freezing Function Stop Temp. | ≥10°C | ||||||||||||
| Product Size (mm) | 540*248*122 | ||||||||||||
FAQ
The BQ Series Open-vented Electric Boiler is a wall-mounted boiler with a single heating element. It does not have a built-in circulation pump and is compatible with external circulation pumps and water tanks.
Yes. The JNOD BQ Series connects directly into existing open-vented pipework and radiator networks. This saves significant labor costs and structural modifications for the end-user.
The system features intelligent, built-in anti-freeze protection. It automatically senses temperature drops and circulates warm water to prevent pipeline freezing.
Absolutely. Equipped with an advanced RS485 Modbus protocol, the boiler integrates smoothly into home automation systems and acts as an efficient backup heat source for air source heat pumps.
